Mini PC

Model: HWST23N10Y13R2008
HS H110-1716700TIPS 4G+128G

Specifications

Processor System	CPU	6 th Gen Intel® mobile , i3 i5 i7 processor，TDP 35W
	PCH	HM87
	BIOS	AMI UEFI BIOS
Graphics	Chipset	Intel UHD Graphics
	VRAM	32GB (Max)
	Multi displays	Support Dual displays
	Interface	1 x HDMI1.4 , resolution 1920 x 1080 @ 60Hz 1 x VGA , resolution 1920 x 1080 @ 60Hz 1 x 80pin Con. HDMI, resolution 1920 x 1080 @ 60Hz
Memory	Type	1 x SO-DIMM DDR3
Memory	Max	32GB
Storage	Type	SSD/HDD
Storage	Interface	1 x MSATA/ SATA SSD/2.5"HDD
Ethernet	Lan IC	Realtek 8111H Gigabit Ethernet
	Interface	10/100/1000Mbps
	Connector	1 x RJ45
Wireless	Type	PCIe+USB Wi-Fi/BT module
Wireless	Interface	1 x MINI PCIE for Wifi+BT module

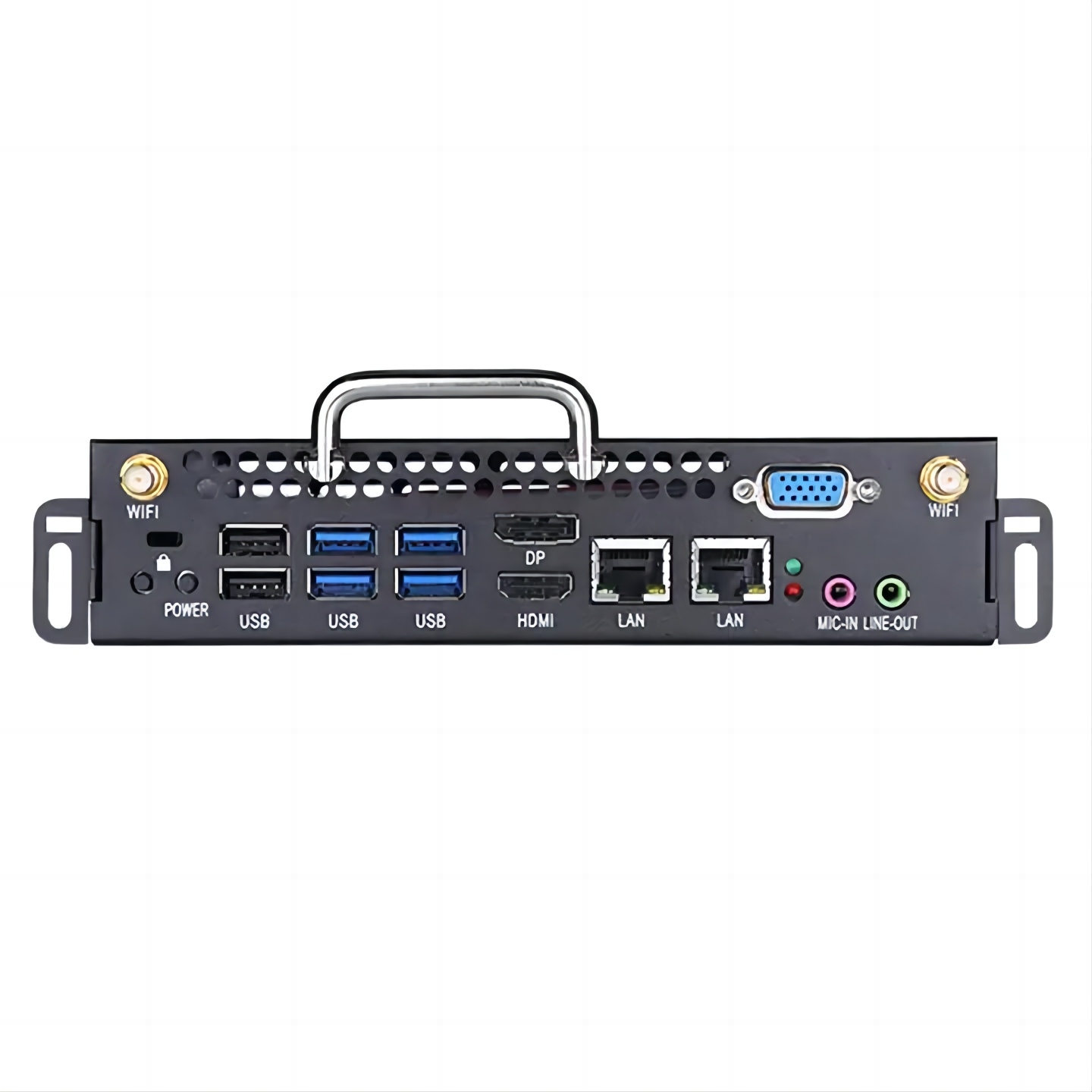

IO Interface	Front panel	1 x HDMI1.4,1920 x 1080 @ 60Hz 1 x VGA,1920 x 1080 @ 60Hz 2 x USB 2.0 ,4 x USB 3.0 1 x RJ45 1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT 1 x Power button, 1 x Reset button , 2 x LED
IO Interface	Rear pane	1 x 80pin : HDMI ,2 USB2.0 ,1 USB3.0,TTL,AUDIO out 1 x 2.5/5.5 DC IN JACK
Software	OS Supports	WINDOWSXP/7/10 / LINUX
	Watchdog	Support
	Timing boot	Support
	Power on startupx	Support
	Restore system	Support
Power	Power inpu	12 /19V DC IN, 2.5/5.5 DC Jack
Size	size	195 x 180 x 42 mm
Environment	Operating Temp	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
